VYRSA 35 Brass Full Circle 20mm Impact Sprinkler

by HR
SKU VYR-35
Sale Sale
Original price $39.00
Original price $3.05 - Original price $40.50
Original price $39.00
Current price $38.36
$3.05 - $39.49
Current price $38.36

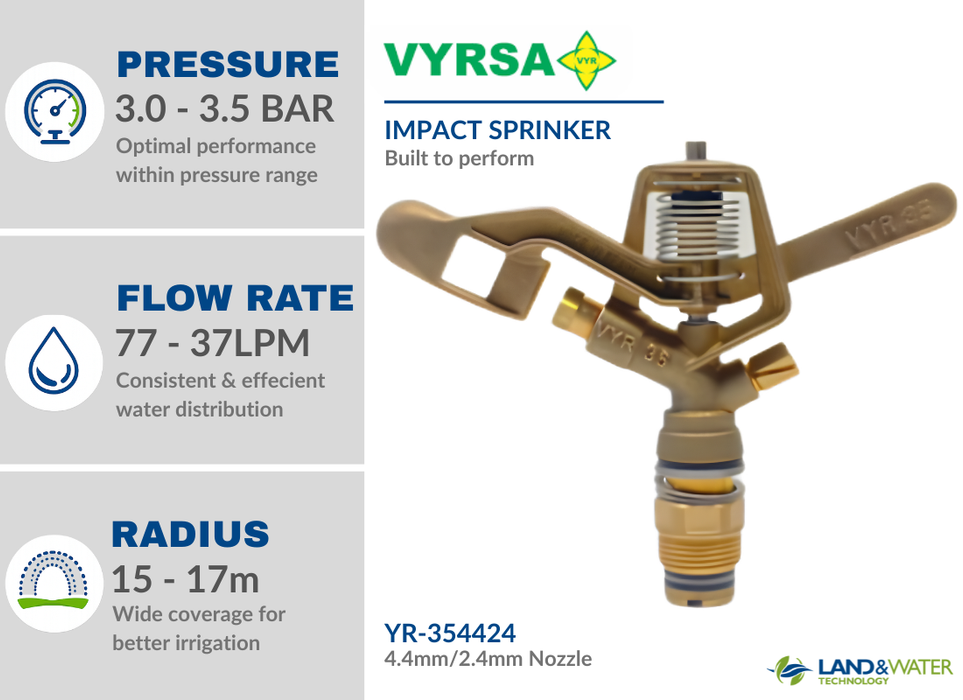

VYRSA 35 Brass Full Circle 20mm Male Double Nozzle 26 x 26 Trajectory

AG full-circle brass 3/4" sprinkler VYR-35

The sprinkler VYR-35 is the "flagship" of our catalog. It is an agricultural full circle sprinkler, made ​​of brass and with two connection references, 3/4" male or 3/4" female. Its axis and springs are made of stainless steel, and their O-rings and washers in stainless steel, Teflon and special polycarbonates to resist contact with the more aggressive fertilizers in market .
The wide range of brass or plastic nozzles offer a number of possible combinations. This sprinkler is designed to work under a flow range between 660 and 3300 l/h, at pressures between 1.75 and 4.5 BAR and a cover range between 42-60 ft. (13 and 18 meters) of diameter. The sprinkler VYR-35 can work with one or two nozzles, both nozzles are 26 degree angle to the horizontal plane. Their average time of rotation comes to be approximately 40 sec. / 360 (50 PSI / 3 BAR, 4.40 x2, 40 mm).

Specifications

Range distance: 42-60 ft. (13-18 m).
Flow: 2,7-15 GPM (660- 3270 l/h).
Working pressure: 25-65 PSI (1,75- 4,5 BAR).
Area: Full circle.
Nozzles: Two nozzles: one main nozzle and a secondary deflector nozzle or plug.
Trajectory angles: 26º and 26º.
Maximum stream height: 14 ft. (4,2 m).
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 60x60R, 50x60T, 60x60T ft.

Features

  • Medium flow agricultural impact sprinkler.
  • 3/4" male or female connection.
  • Made of brass and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 26º and 26º.
  • Designed for full coverage irrigation offering best compliance with spacing standards in the market.
  • Leading sprinkler in the agricultural market.

Dimensions

  • Height: 5.51 inches
  • Width: 6.69 inches
  • Weight: 0.95 lb.
  • Units per box: 50
  • Weight per box: 48.50 lb.

Specifications

  • Range distance: 42-60 ft. (13-18 m).
  • Flow: 2,7-15 GPM (660- 3270 l/h).
  • Working pressure: 25-65 PSI (1,75- 4,5 BAR).
  • Area: Full circle.
  • Nozzles: Two nozzles: one main nozzle and a secondary deflector nozzle or plug.
  • Trajectory angles: 26º and 26º.
  • Maximum stream height: 14 ft. (4,2 m).
  • Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
  • Uniformity coefficient higher than 90% in areas of 60x60R, 50x60T, 60x60T ft.
