Zenit CTG1000 7.50kW Three Phase Submersible Grinder Sewage Pump with Chopper Impeller (Max 3060LPM/235kPa)

The Zenit CTG1000 7.50kW Three Phase Submersible Grinder Sewage Pump is a heavy-duty commercial wastewater pump engineered for the reliable transfer of heavily contaminated sewage and wastewater containing solids, wipes, rags, and fibrous materials. Featuring Zenit's advanced open channel chopper impeller and integrated cutting system, the CTG1000 efficiently cuts and shreds difficult waste before it enters the hydraulic passage, minimising blockages while delivering exceptional hydraulic performance and operational reliability.

Designed for demanding municipal, industrial, commercial, and agricultural applications, the CTG1000 combines the high flow capabilities of an open channel impeller with the superior solids handling performance of a vortex-style hydraulic design. Heavy-duty cast iron construction, dual silicon carbide mechanical seals, integrated thermal protection, leakage monitoring, and a corrosion-resistant epoxy coating ensure long-lasting performance in harsh wastewater environments. The powerful 7.50kW motor utilises star-delta starting, reducing starting current while providing smooth, reliable operation in larger pumping installations.

FEATURES

• Maximum flow rate of 3,060 litres per minute

• Maximum head of 23.5 metres (235kPa)

• Heavy-duty 7.50kW three phase motor

• Star-delta starting for reduced starting current and smoother motor operation

• Advanced chopper impeller with integrated cutting system for shredding solids and fibrous waste

• Open channel hydraulic design delivering high flow with excellent solids handling

• Heavy-duty EN-GJL250 cast iron pump body

• Ductile cast iron impeller (EN-GJS600) for maximum durability

• 34mm free passage for efficient solids transfer

• Dual silicon carbide (SiC) mechanical seals operating in an oil chamber

• Integrated thermal overload protection and leakage detection sensor

• Corrosion-resistant 200μm bi-epoxy coating suitable for aggressive wastewater environments

• Stainless steel AISI 431 shaft

• IP68 rated motor suitable for continuous submerged operation

• Supplied with a 10 metre power cable

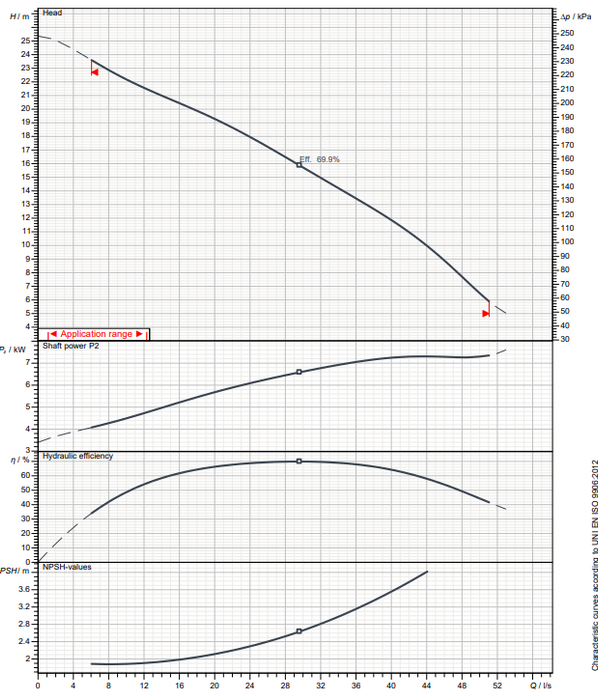

• Hydraulic efficiency of up to 69.9%

SPECIFICATIONS

• Power: 7.50kW

• Voltage: 400-415V Three Phase

• Motor: 4 Pole

• Starting Method: Star-Delta

• Maximum Flow: 3,060 LPM

• Maximum Head: 23.5 metres (235kPa)

• Outlet Size: DN100

• Inlet Size: DN150

• Maximum Free Passage: 34mm

• Insulation Class: Class H

• Protection Rating: IP68

• Motor Speed: 1,422 RPM

• Cable Length: 10 metres

• Construction: Cast Iron

• Mechanical Seals: Dual Silicon Carbide (SiC)

• Hydraulic Efficiency: Up to 69.9%

• Series: Zenit Grey CTG

• Warranty: 12 Months

APPLICATIONS

• Municipal sewage pumping stations

• Commercial wastewater systems

• Industrial wastewater transfer

• Food processing facilities

• Livestock and agricultural operations

• Abattoirs and meat processing plants

• Paper and textile manufacturing

• Pump stations handling fibrous and difficult wastewater

• Large commercial and industrial sewage installations

• Emergency wastewater and stormwater pumping
