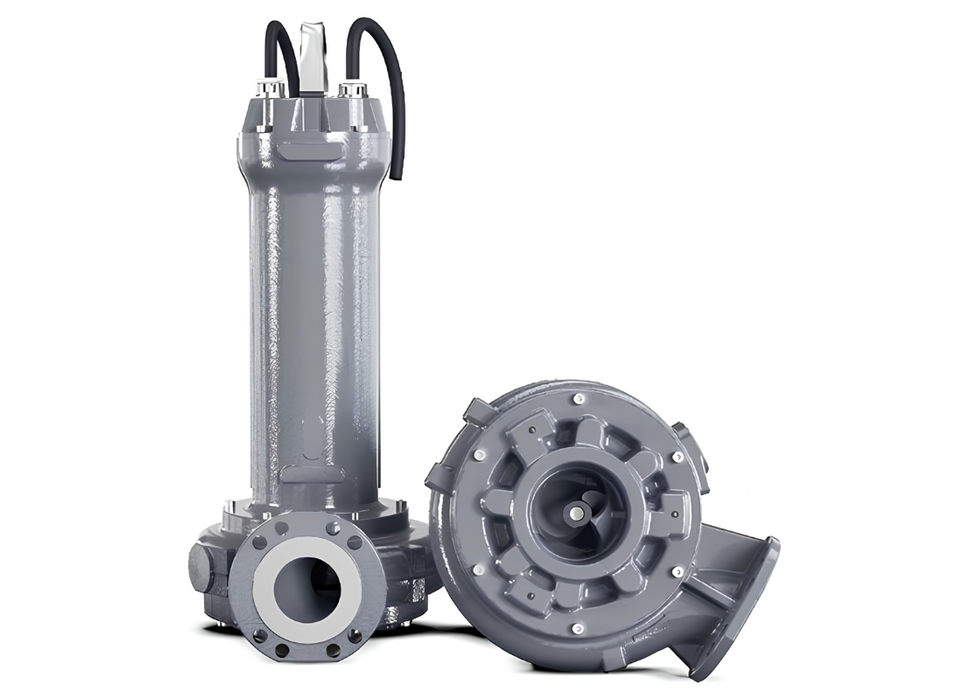

Zenit CTG300 2.20kW Three Phase Submersible Grinder Sewage Pump with Chopper Impeller (Max 1930LPM/130kPa)

The Zenit CTG300 2.20kW Three Phase Submersible Grinder Sewage Pump is a heavy-duty commercial wastewater pump engineered to handle highly contaminated sewage and wastewater containing solids, rags, fibrous materials, and other difficult waste. Featuring Zenit's advanced CTG chopper impeller and cutting system, the pump efficiently cuts and shreds solids before they pass through the hydraulic system, significantly reducing the risk of blockages while maintaining exceptional pumping performance.

Combining the high flow characteristics of an open channel impeller with the superior solids handling capabilities of a vortex design, the CTG Series delivers reliable operation in demanding commercial, industrial, agricultural, and municipal applications. Constructed from premium cast iron with dual silicon carbide mechanical seals, integrated motor protection, and an anti-clogging hydraulic design, the Zenit CTG300 is built for long service life in the harshest operating environments.

FEATURES

• Maximum flow rate of 1,930 litres per minute
• Maximum head of 13 metres (130kPa)
• Heavy-duty 2.20kW three phase motor

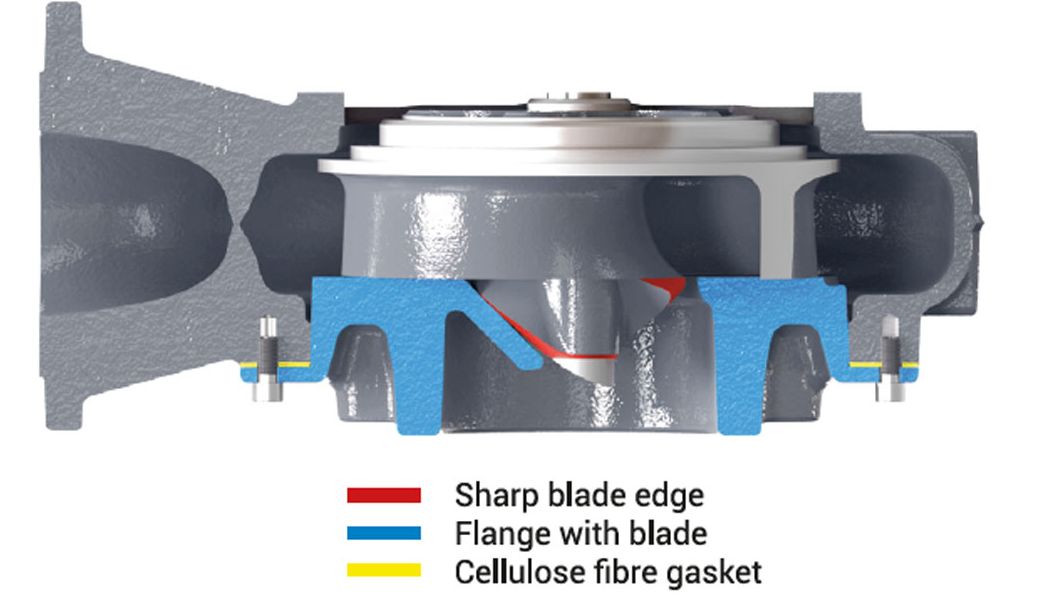

• Innovative chopper impeller and cutting system for shredding solids and fibrous waste

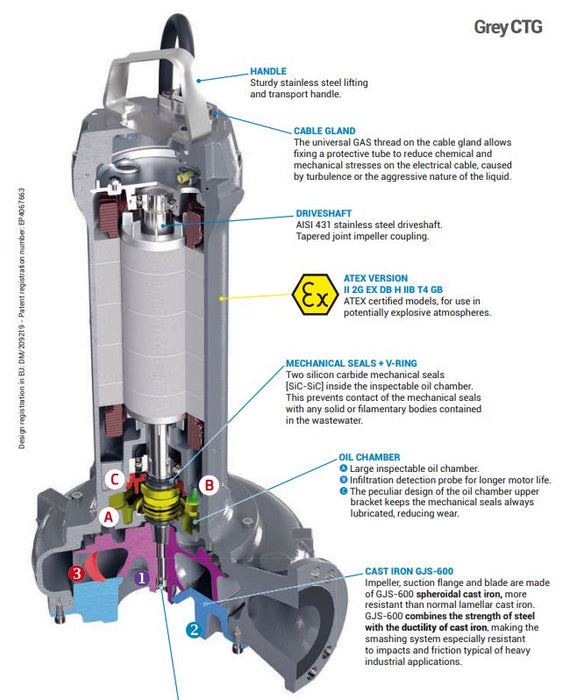

• Premium EN-GJL250 cast iron pump casing for maximum durability
• EN-GJS600 ductile iron impeller, suction flange and cutting components
• Wide 36mm free passage for efficient solids handling
• Anti-clogging hydraulic design for reliable continuous operation
• Dual silicon carbide (SiC) mechanical seals operating in an oil chamber
• Moisture detection probe protecting the mechanical seal chamber
• Integrated thermal overload protection within the motor stator
• Corrosion-resistant two-component epoxy coating (200μm)
• AISI 431 stainless steel shaft
• IP68 rated motor suitable for continuous submersible operation
• Supplied with a 10 metre power cable

SPECIFICATIONS

• Power: 2.20kW

• Voltage: 415V Three Phase

• Motor: 4 Pole

• Maximum Flow: 1,930 LPM

• Maximum Head: 13 metres (130kPa)
• Outlet Size: DN80 (G 2")
• Maximum Free Passage: 36mm
• Insulation Class: Class H (180°C)
• Protection Rating: IP68
• Cable Length: 10 metres
• Construction: Cast Iron
• Mechanical Seals: Dual Silicon Carbide (SiC)
• Series: Zenit Grey CTG
• Warranty: 12 Months

APPLICATIONS

• Sewage pumping stations
• Commercial and industrial wastewater systems
• Municipal wastewater infrastructure
• Food processing facilities
• Agricultural and livestock operations
• Abattoirs and meat processing plants
• Paper and textile manufacturing
• Pump stations handling fibrous or difficult waste
• Emergency wastewater transfer applications
