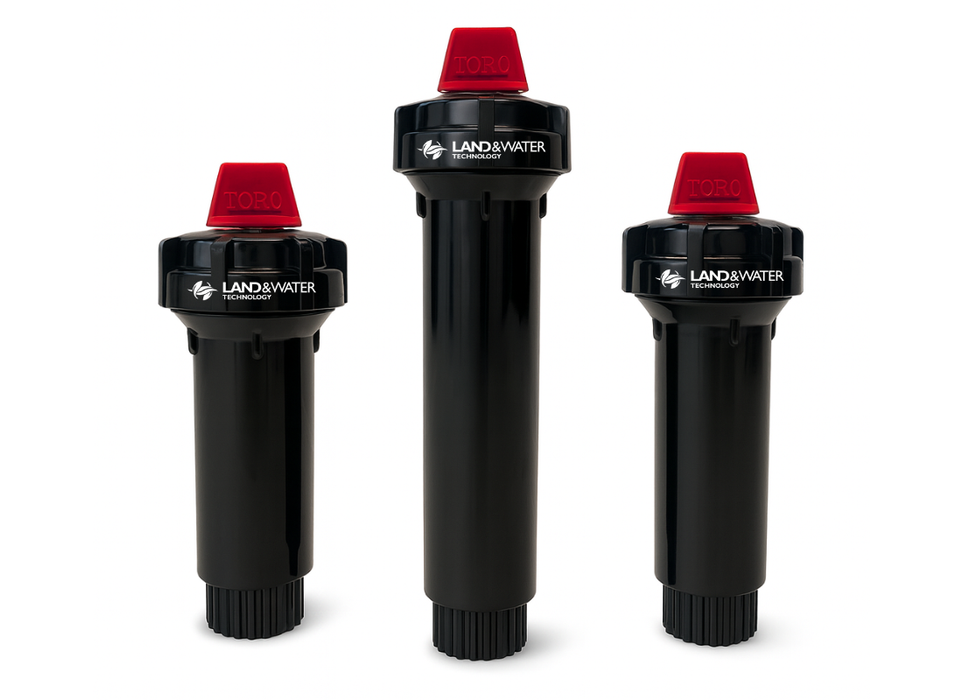

Toro 570Z-LP Series Pop-Up Sprinkler Body

The Toro 570Z Series Pop-Up Sprinkler Bodies are a trusted industry standard, delivering over 25 years of proven performance in residential and commercial irrigation. Designed for exceptional flexibility, the 570Z range allows contractors and homeowners to configure the perfect spray pattern using hundreds of compatible Toro nozzles—including fixed MPR, TVAN adjustable, special pattern nozzles, and even Hunter MP Rotator male-threaded nozzles. With models available in 2", 3", 4", 6", and 12" pop-up heights, the 570Z series provides a tailored solution for everything from small garden beds to larger turf areas.

The 570Z is engineered with a low-pressure seal that only flushes upon retraction, protecting the sprinkler from debris while enabling more sprinkler heads to run on a single zone without wasting water. Its durable engineering-grade plastic construction, stainless steel retraction spring, and ratcheting riser make on-site installation and adjustments fast, reliable, and maintenance-free. Every sprinkler body is shipped with a flush plug installed, ensuring effortless system flushing and simple riser pull-up during installation.

With optional check-valve models, side-inlet configurations, and pressure-regulating options in the wider 570 Series family, Toro’s 570Z line offers unparalleled flexibility for new installations or retrofits. Whether you’re designing a compact landscape or an intricate irrigation layout, the Toro 570Z Series provides durability, precision, and versatility backed by decades of field performance.

FEATURES

• Zero-flush seal prevents water loss during pop-up
• Low-pressure seal at 100 kPa for efficient operation
• Retraction flushing clears debris for consistent pop-down
• Compatible with all Toro spray nozzles:
  • 570 MPR Fixed Nozzles
  • Toro TVAN Adjustable Nozzles
  • Toro Special Pattern Nozzles
  • Hunter MP Rotator (male)
• Bodies supplied with flush plug installed for quick system flushing
• Ratcheting riser for easy arc alignment
• Available pop-up heights: 50mm, 75mm, 100mm, 150mm, 300mm
• Side inlet options available (6P-SI and 12P-SI models)
• Durable engineering plastic body with stainless steel spring
• Check-valve options (Check-O-Matic) help prevent low-head drainage
• Suitable for small garden beds, narrow turf areas, and compact landscapes
• Inlet: 15mm BSPM (½" Female Uni-Thread)


SPECIFICATIONS

• Performance
  • Spacing: 0.6 – 5.5 m
  • Flow Rate: 0.2 – 17 L/min
  • Recommended Operating Pressure: 140 – 350 kPa
  • Maximum Operating Pressure: 520 kPa
  • Minimum Pressure for Check-O-Matic: 170 kPa
• Dimensions
  • Body Diameter:
    • 35 mm on Shrub, 2P, 3P, 4P, 6P, 6P-SI
    • 41 mm on 12P
    • 44 mm on 12P-SI
  • Cap Diameter: 50 mm
  • Side Inlet Position: 120 mm from top to inlet center
  • Body Heights:
    • 2P: 103 mm
    • 3P: 122 mm
    • 4P: 158 mm
    • 6P: 211 mm
    • 12P: 395 mm
• Inlet Size
  • 15mm BSP Male
• Compatible Nozzle Types
  • Toro 570 MPR Fixed
  • Toro TVAN Adjustable
  • Toro Special Pattern
  • Hunter MP Rotator (Male Thread)
