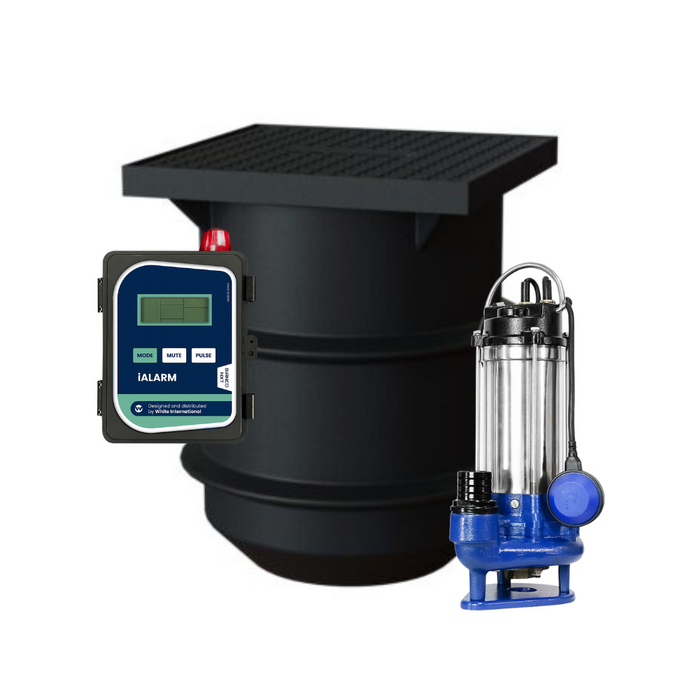

Bianco 250L Packaged Wastewater Sewage Pump Station with B120GS2 Grinder Pump & Audio/Visual iAlarm Kit (Max 341LPM/200kPa)
Bianco 250L Wastewater Pump Station with Grinder/Macerator Pump
DOWNLOAD DATA SHEET | DOWNLOAD INSTALLATION MANUAL |
FREIGHT NOT INCLUDED PLEASE CONTACT US FOR QUOTATION
The Bianco B120GS2 is a powerful submersible grinder/macerator pump system designed for small to medium wastewater applications in industrial, agricultural, and residential settings. Engineered for performance and reliability, it features a unique dual-stage cutting system—a primary cutter and a secondary grinder—making it highly effective in handling soft solids, string-like materials, and other challenging waste types commonly found in sewage applications.
Note: This unit is not suitable for use with sand or gravel to avoid premature wear on the grinding components.
The B120GS2 is fully submersible up to 10 metres and is designed for stationary installation on a level surface, connecting seamlessly to fixed pipework.
INCLUSIONS
- Bianco B120GS2 Grinder/Macerator Pump
- Bianco iCON 250L Polyethylene Tank (single, freestanding)
- Bianco Level Alarm – 10A, 240V
- Pre-installed In-Tank Fittings:
- Ball valve
- Non-return valve
- Barrel unions
- Interconnecting PVC pipework
- Class A 600x600 Lid (Class B & D lids available upon request)
- Single Pump Controller Available Separately - Click Here!
APPLICATIONS
- Pumping sewage and solid-laden wastewater
- Converting soft solids into slurry for easy discharge
- Suitable for:
- Granny flats
- Garbage rooms
- Small pump-away systems
- Industrial and agricultural wastewater treatment
CONSTRUCTION
- Durable polyethylene tank
- Submersible up to 10m
- Stationary base installation
- Plumber-installed inlet pipe
- Pre-configured for easy setup with all internal fittings included
IALARM FEATURES
- Dual Alarm Modes: Can be set for high or low-level alarms, offering flexibility for various applications.
- Audible & Visual Indicators: Clearly signals alarm conditions with both sound and light, ensuring prompt attention.
- Customizable Alarm Modes: Choose between continuous or intermittent alarm modes to suit your needs.
- Pre-Wired Setup: Comes with a 1.5m power cable and 10m float cable with counterweight, making installation quick and hassle-free.
- Durable Construction: Built with UV-resistant plastic and an LCD protection layer for enhanced longevity and reliability.
- Ingress Protection: Rated IP54, ensuring protection against dust and water splashes.
- Wide Operating Temperature Range: Functions effectively in temperatures from -25°C to +55°C.
SPECIFICATIONS
Brand | Bianco iCON |
Product Type | Packaged Pump Station |
Suitable For | Sewage and Wastewater |
Flow Rate (L/min) | 341 L/min |
Hp | 2.2 Hp |
kPa | 200 kPa |
Kilo Watts | 1.5 kW |
Max Head (m) | 20 m |
Volts | 240 V |
Controller | iALARM |
Warranty | 2 years |
